How Richard Feynman's Simple Sketches Revolutionized Quantum Physics Forever

🌪️ The crisis that gave birth to a language

By the late 1940s, theoretical physics was at an impasse. Quantum electrodynamics (QED) — the theory describing how light and matter interact — produced infinite results in every calculation beyond the first order of approximation. The equations were correct in form, but the integrals exploded into infinities that made every prediction meaningless. Murray Gell-Mann commented pointedly: “Theoreticians were in disgrace.”

In June 1947, leading American physicists met at the Shelter Island Conference in New York. There the problems of QED were discussed, and Hans Bethe performed the first non-relativistic calculation of the Lamb shift — a deviation in hydrogen's energy levels that classical theory could not explain. The young Richard Feynman, just 29 years old, returned to Cornell determined to solve the problem in his own way.

✏️ The invention: sketches instead of equations

In 1948, at the Pocono Conference in Pennsylvania, Feynman presented his work titled “Alternative Formulation of Quantum Electrodynamics.” There he used for the first time the diagrams that would bear his name. The result was catastrophic — or at least it seemed so. The audience consisted of titans like Paul Dirac, Edward Teller, and Niels Bohr, and no one understood what exactly Feynman was doing with these peculiar sketches.

It took a third person to change things. Freeman Dyson, a young British mathematician, was convinced that Feynman's method was equivalent to the more formal approaches of Julian Schwinger and Shin'ichirō Tomonaga, but far more practical. In 1949, Dyson published a paper that translated the diagrams into rigorous mathematical language, adding rules for renormalization. From that moment, Feynman diagrams conquered physics.

🔺 The three fundamental elements

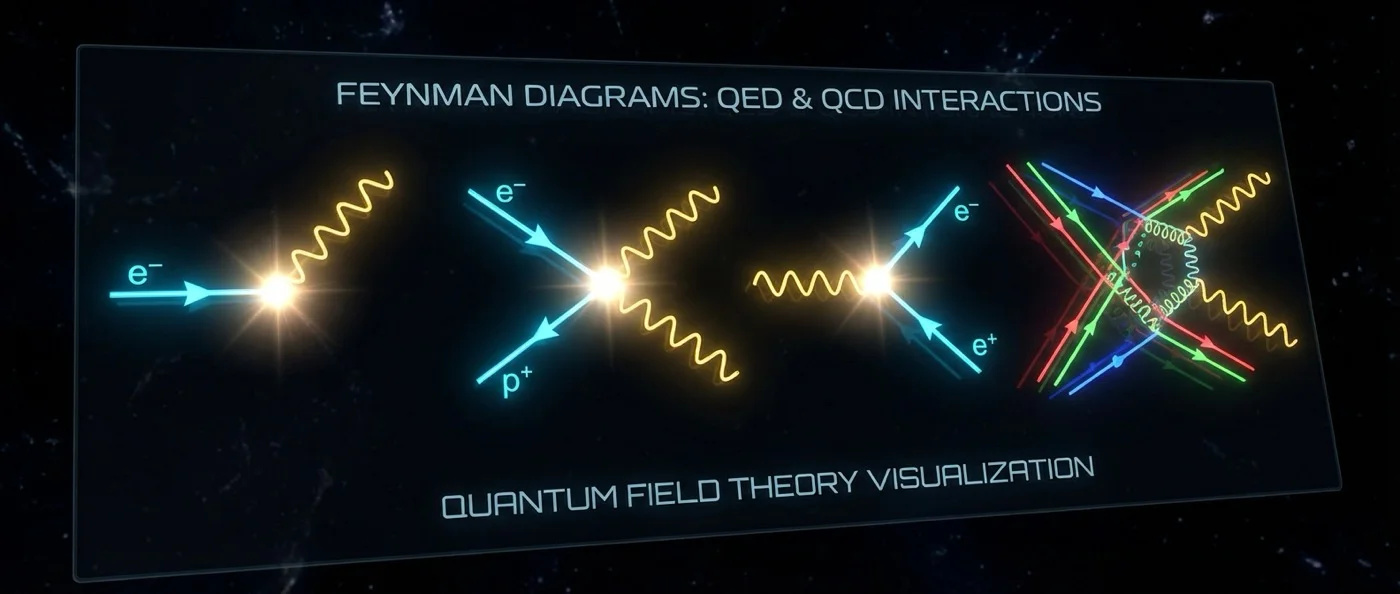

The elegance of Feynman diagrams lies in their simplicity. All of quantum electrodynamics can be encoded in three basic actions, as Feynman himself described them in his classic book QED: The Strange Theory of Light and Matter (1985):

First, a photon travels from one point in spacetime to another. This is represented by a wavy line. Second, an electron travels from one point to another, represented by a straight line with an arrow. Third, an electron emits or absorbs a photon at a point — this is the vertex, where two straight lines meet a wavy one.

From these three building blocks, every possible interaction between light and matter is constructed. The probability of a process is calculated by summing the probability amplitudes of all possible diagrams, according to defined rules called Feynman rules. Each internal line corresponds to a propagator, each vertex to a coupling constant, and the final probability is the square of the total amplitude.

⏳ Virtual particles and time running backwards

One of the most counterintuitive aspects of Feynman diagrams is the interpretation of antiparticles. Feynman adopted the idea of Swiss physicist Ernst Stueckelberg, according to which a positron (the electron's antiparticle) can be thought of as an electron moving backward in time. In the diagrams, this means that a fermion line with an arrow opposite to the flow of time represents an antiparticle.

Even more striking is the concept of virtual particles. The internal lines of a diagram represent particles that do not satisfy special relativity's energy-momentum relation — they are “off-shell.” These particles are never directly observed, but their effect on the final result is measurable. At each vertex, energy and momentum are strictly conserved, while virtual particles can theoretically travel faster than light.

💎 The incredible accuracy: “The jewel of physics”

Feynman called quantum electrodynamics "the jewel of physics," and justifiably so. Using the diagrams, physicists were able to calculate the anomalous magnetic dipole moment of the electron to an accuracy of twelve decimal places — an agreement between theory and experiment unmatched in any branch of science. The fine-structure constant α ≈ 1/137, which appears at every diagram vertex, ensures that higher-order diagrams (more vertices) contribute progressively less, keeping the theory stable.

This hierarchy means that a simple two-vertex diagram already gives an excellent prediction, while each additional order improves accuracy. Computer programs today automatically evaluate tens of thousands of diagrams up to the fifth order, producing predictions that agree perfectly with experiments at CERN and elsewhere.

🌐 Beyond QED: a universal language

The power of Feynman diagrams is not limited to electrodynamics. The same sketches are used today in quantum chromodynamics (QCD) for the strong interactions between quarks and gluons, in the electroweak theory for weak interactions, and even in attempts to quantize gravity. Frank Wilczek, 2004 Nobel laureate in physics, declared that the calculations that won him the prize “would have been literally unthinkable without Feynman diagrams.”

Even fields outside particle physics, such as condensed matter physics, statistical mechanics, and even economic theory, have adopted variations of diagrammatic techniques. David Kaiser, historian of physics at MIT, writes: "Since the middle of the 20th century, Feynman diagrams have revolutionized nearly every aspect of theoretical physics."

⚖️ The limits and the legacy

Feynman diagrams are not omnipotent. They are tools of perturbation theory — they work excellently when the coupling constant is small, but fail to capture non-perturbative phenomena like quark confinement or spontaneous electron-positron pair creation in ultrastrong fields (the Schwinger effect). As Freeman Dyson noted, QED's perturbation series has zero radius of convergence — it is asymptotic, not convergent.

Despite all this, the legacy is enormous. In 1965, Feynman, Schwinger, and Tomonaga shared the Nobel Prize in Physics "for their fundamental work in quantum electrodynamics, with deep-ploughing consequences for the physics of elementary particles." Julian Schwinger, Feynman's rival, dismissed the diagrams as “pedagogy, not physics.” History proved him wrong — today every particle physicist thinks in lines and vertices.

Feynman diagrams remain one of the most powerful tools the human mind has ever devised for decoding the behavior of the microcosm. They constitute a visual language that transformed impossible integrals into almost schoolbook sketches — and simultaneously led to the most precise measurements in the history of physics.
